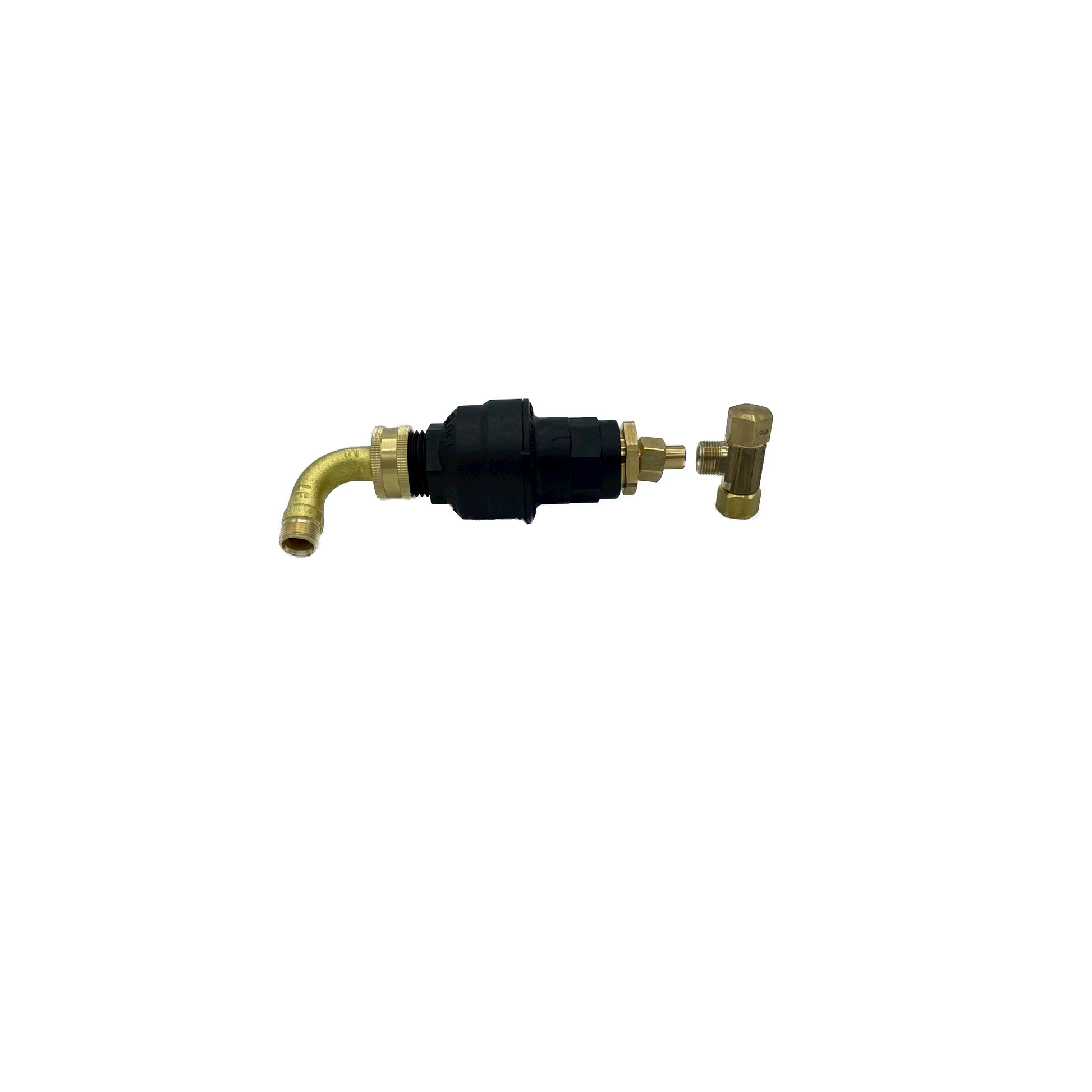

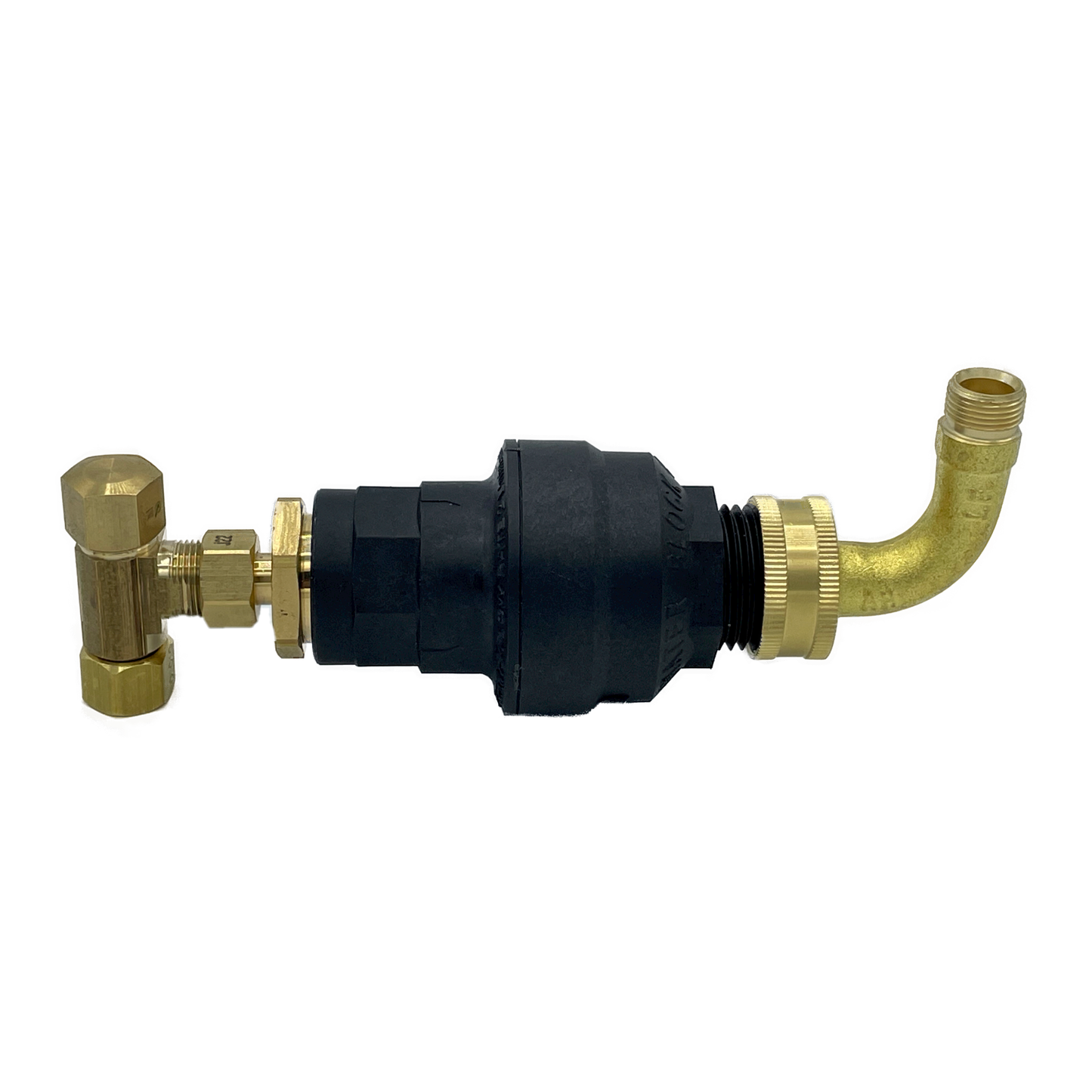

Water Block - Toilet Shutoff Kit For Horizontal Installations

• Automatically shuts off the water supply flow to your toilet to stop leaks and floods
• Detects and stops flapper leaks, supply line leaks, crimp leaks, nut leaks, overflow tube leaks, and all running toilet issues

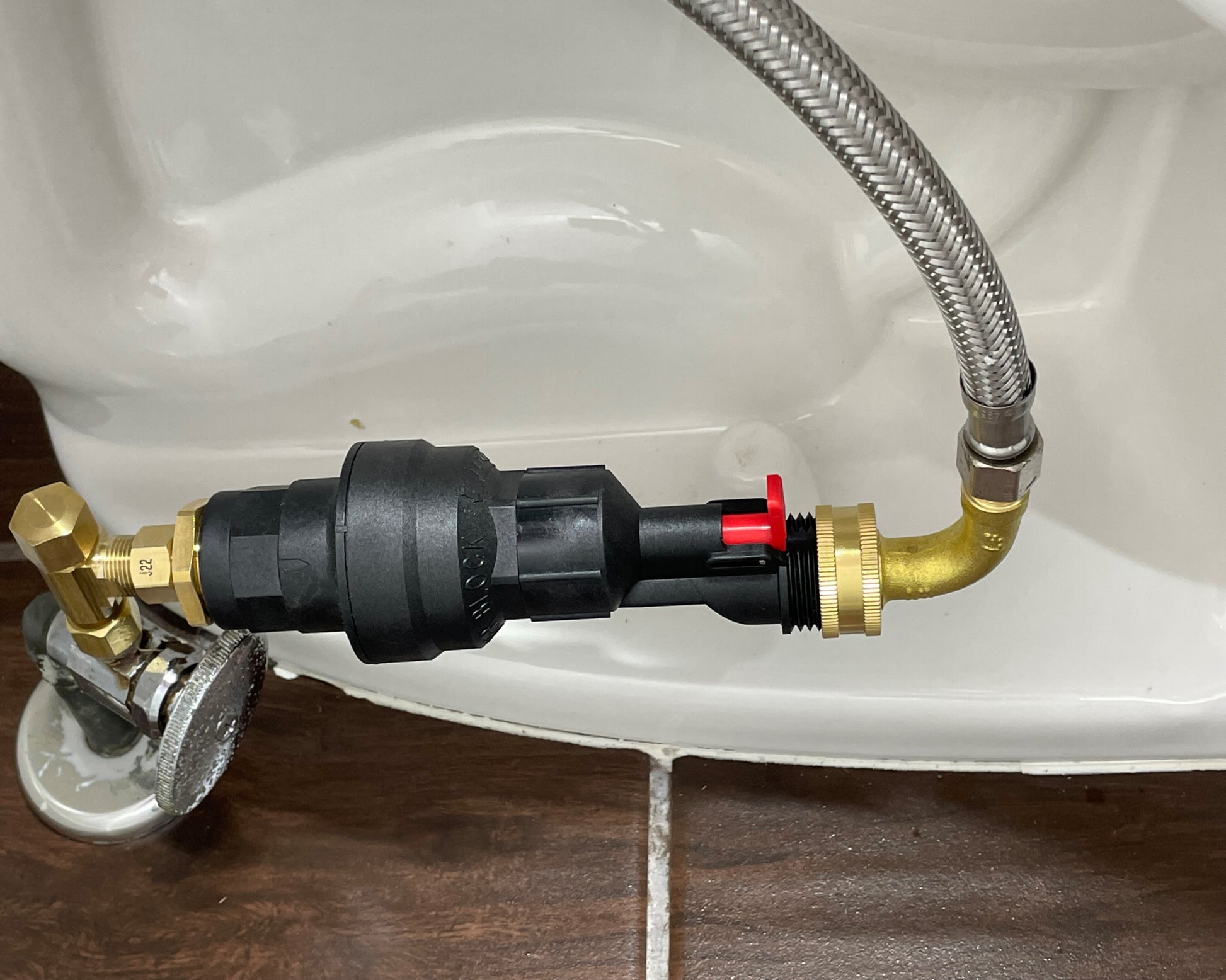

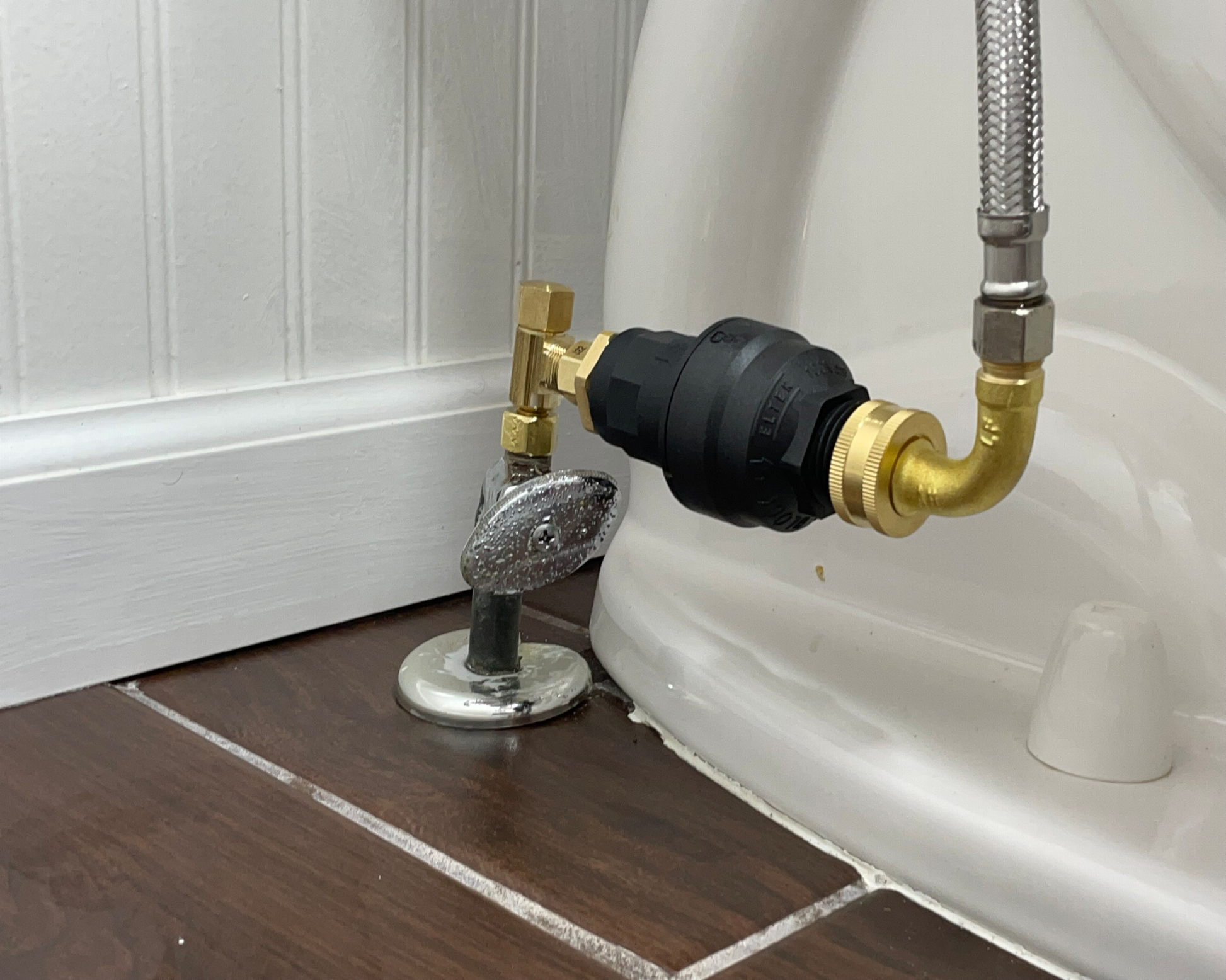

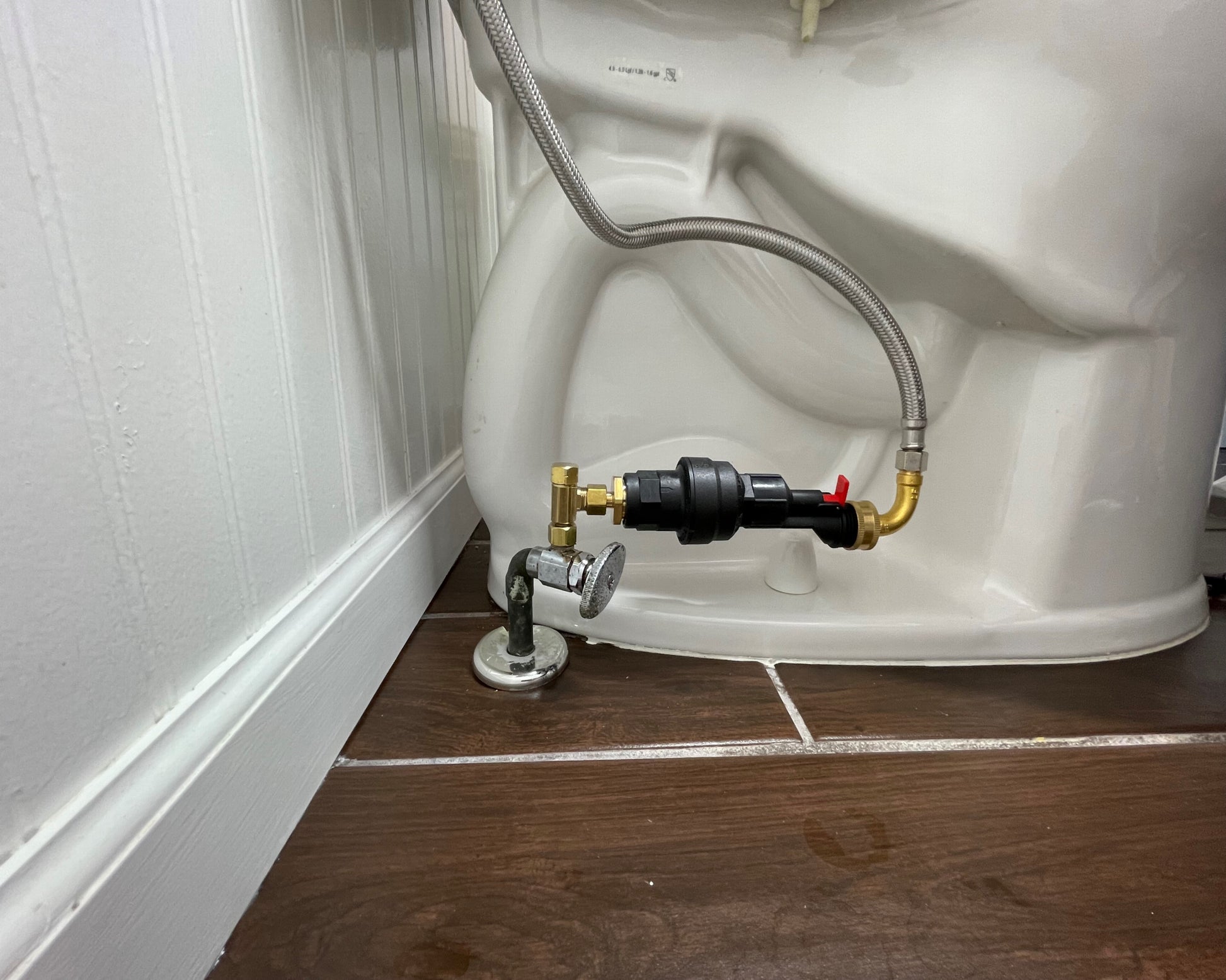

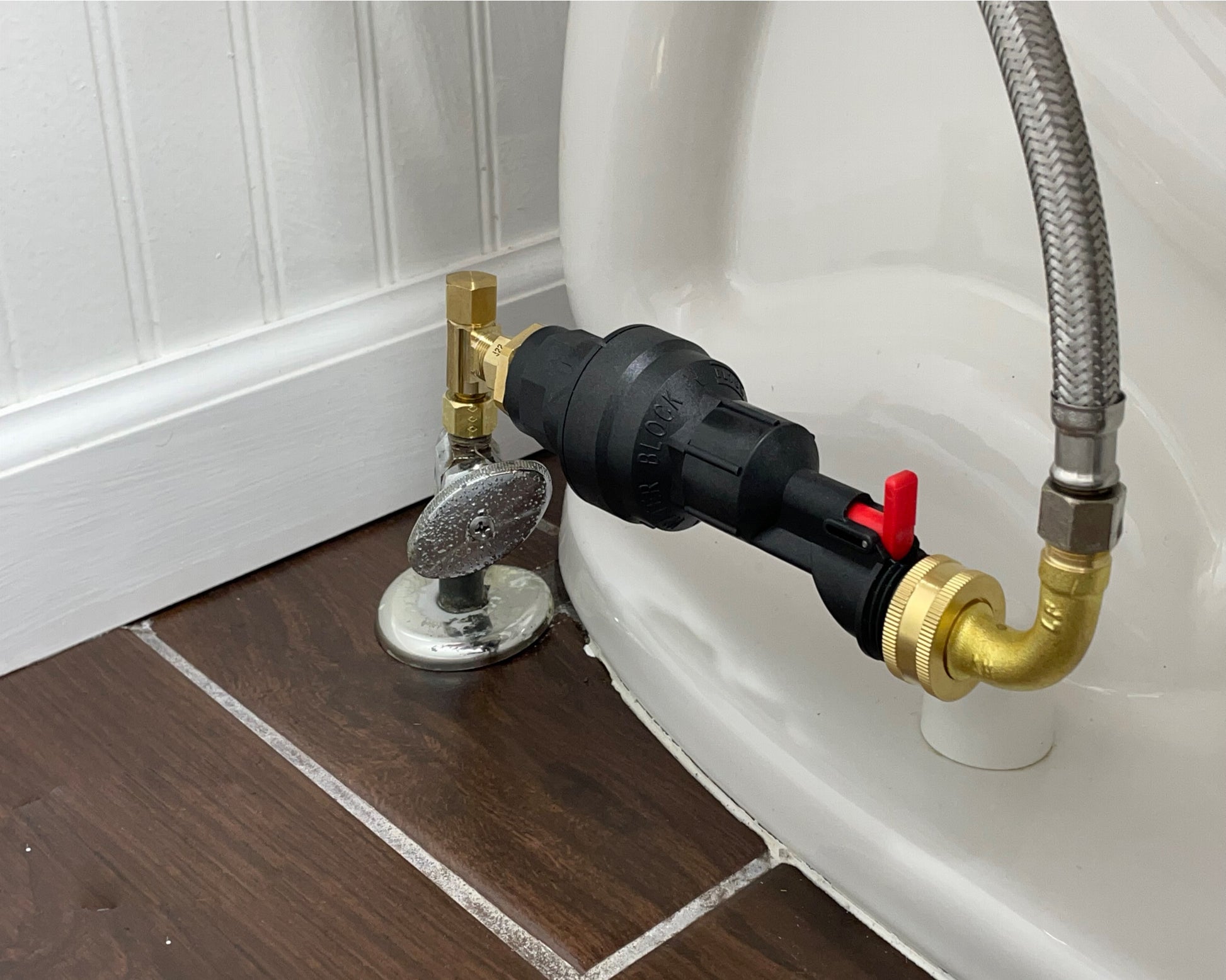

• Easy to install directly downstream of the main water supply shutoff valve
• 3/8" brass fittings included in kit
• Qty1: 3/8" straight pipe male with compression ferrule and nut to 3/4" male. Garden hose thread
• Qty1: 3/4" female to 3/8" male brass elbow. Garden hose thread
• Qty1: 3/8" brass tee. Garden hose thread
• Automatic, 100% mechanical, no batteries or power required
• Valve activates when a preset, continuous leak volume is reached
• Automatically reactivates itself if a predetermined level is not attained
• 10 activation volume settings in increments of 1.3 gallons (1.3 - 13.0 gallons)
• Set device for gallon setting slightly above toilet tank capacity
• Water Block only stops water leaks downstream of the device
• Easy DIY installation

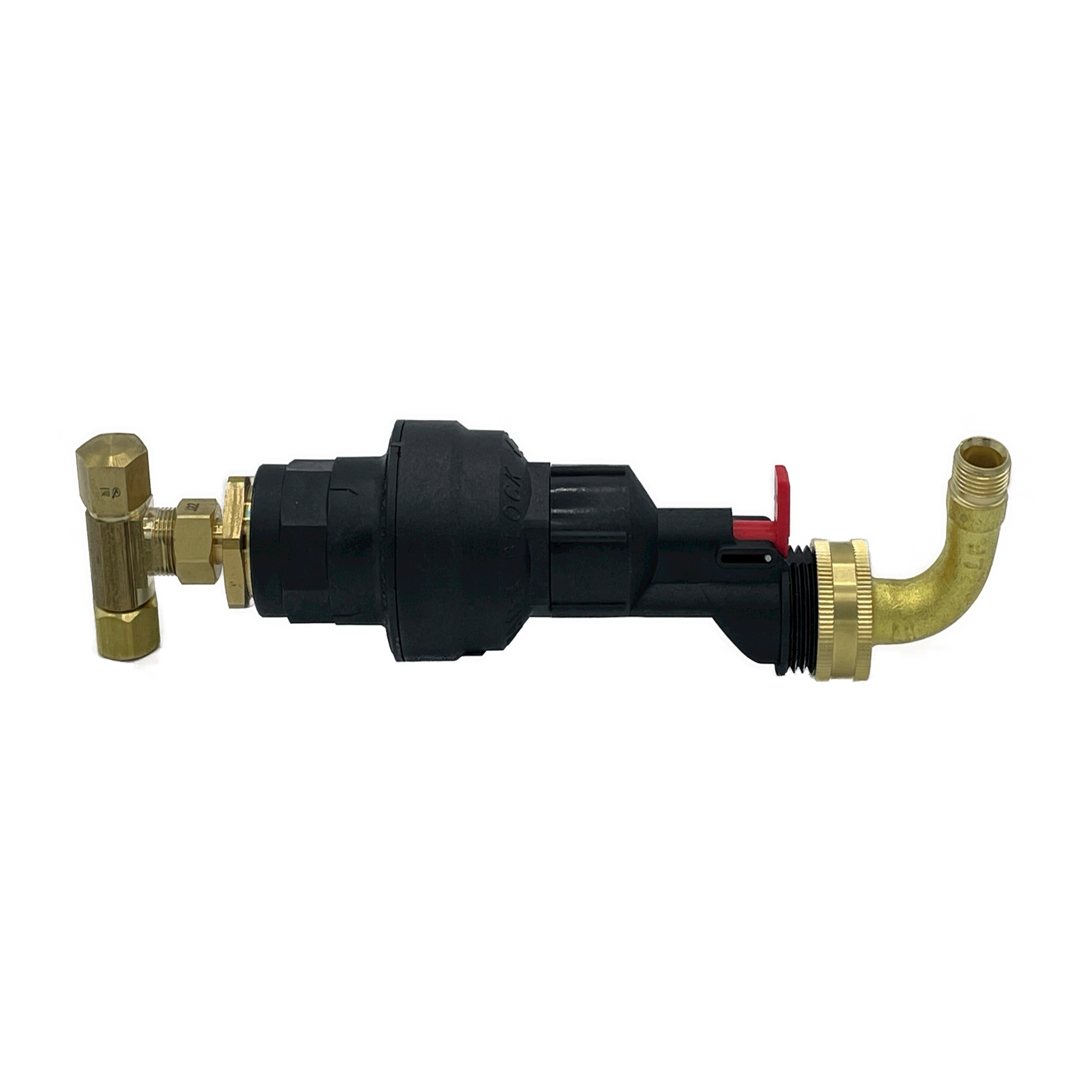

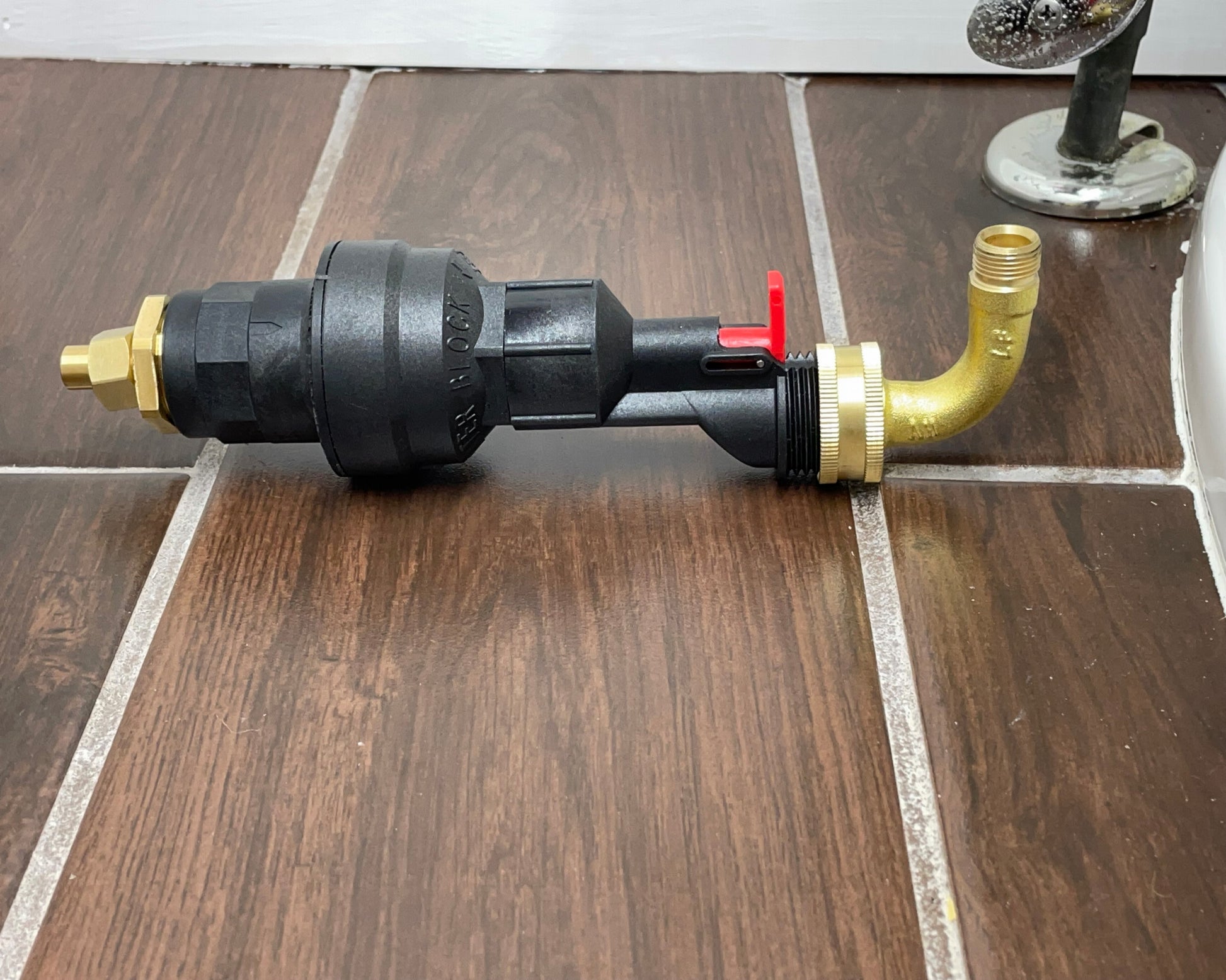

• Internal release pin or convenience tool option for manual reset (only necessary upon activation)
• Convenience tool provided for manual reset (only necessary if activation occurs)
• Learn More Here

Manufacturer Brochure Here

Technical Specifications:

• Device with Fittings Overall Length: 7.5 in.
• Water Block: 3/4 in. Garden Hose Thread Female Inlet Connection
• Water Block: 3/4 in. Garden Hose Thread Male Outlet Connection
• Brass Fitting: 3/8 in. Male to 3/4 in. Male Inlet Connection
• Brass Elbow Fitting: 3/4 in. Female to 3/8 in. Male Inlet Connection
• Brass Tee: 3/8 in.

Operation Design Conditions:

• Ambient Temperature: 36°F - 140°F
• Relative Humidity: 30% - 95%
• Fluid Temperature: 36°F - 158°F
• Device Requires A Continuous Flow or A Minimum Leak Rate of 0.50 Gal/Min To Activate

Legal Notice:

• California Prop 65 Warning - This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
