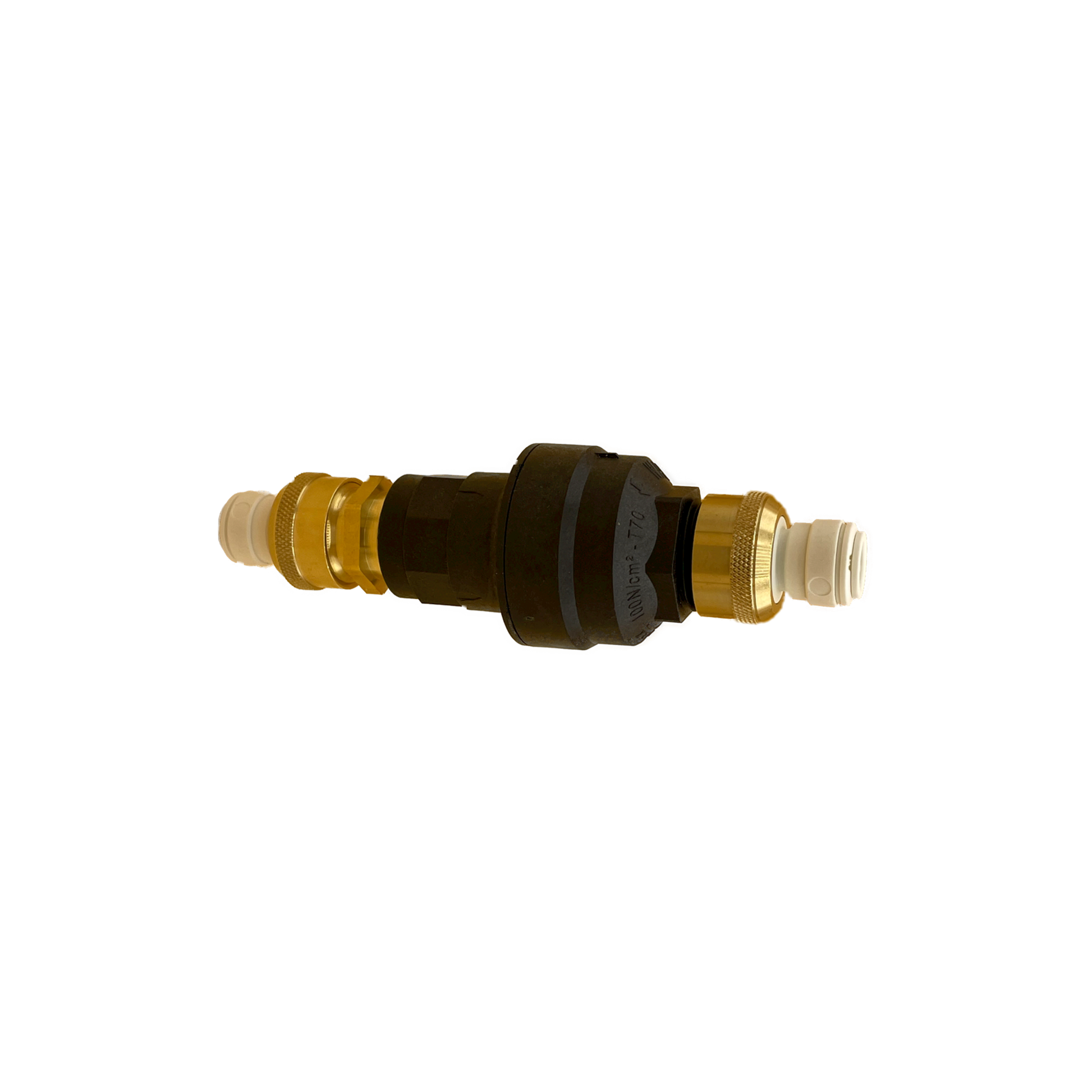

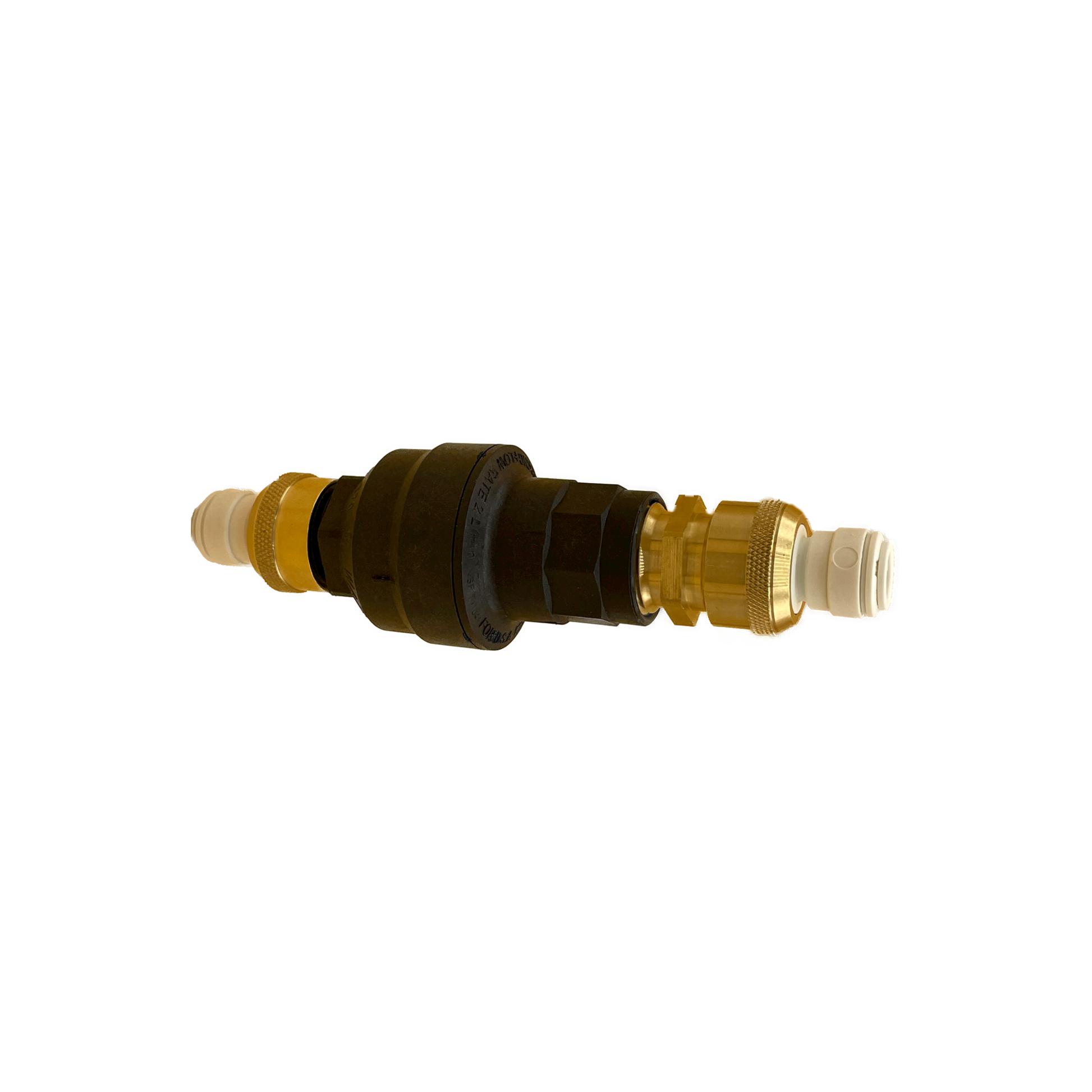

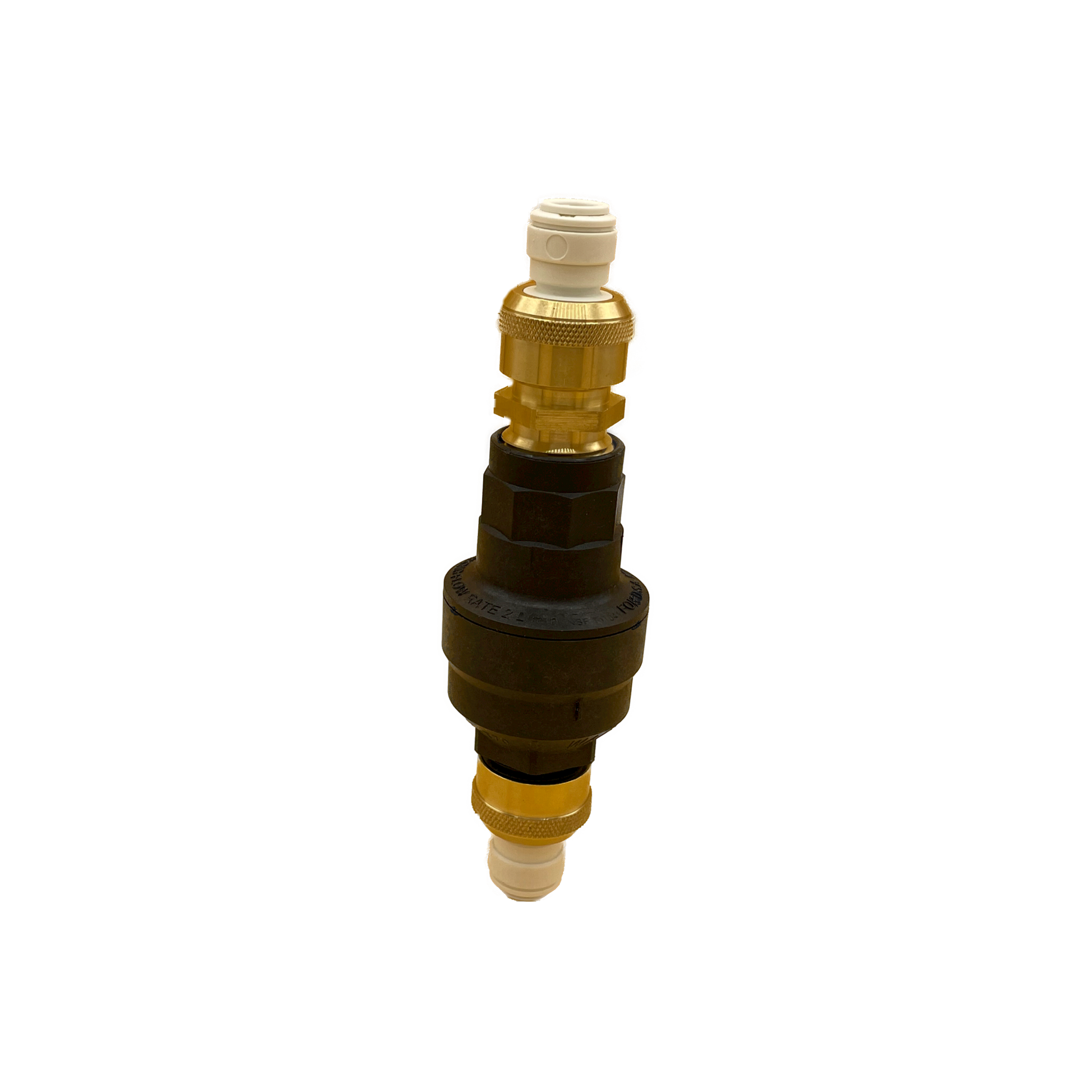

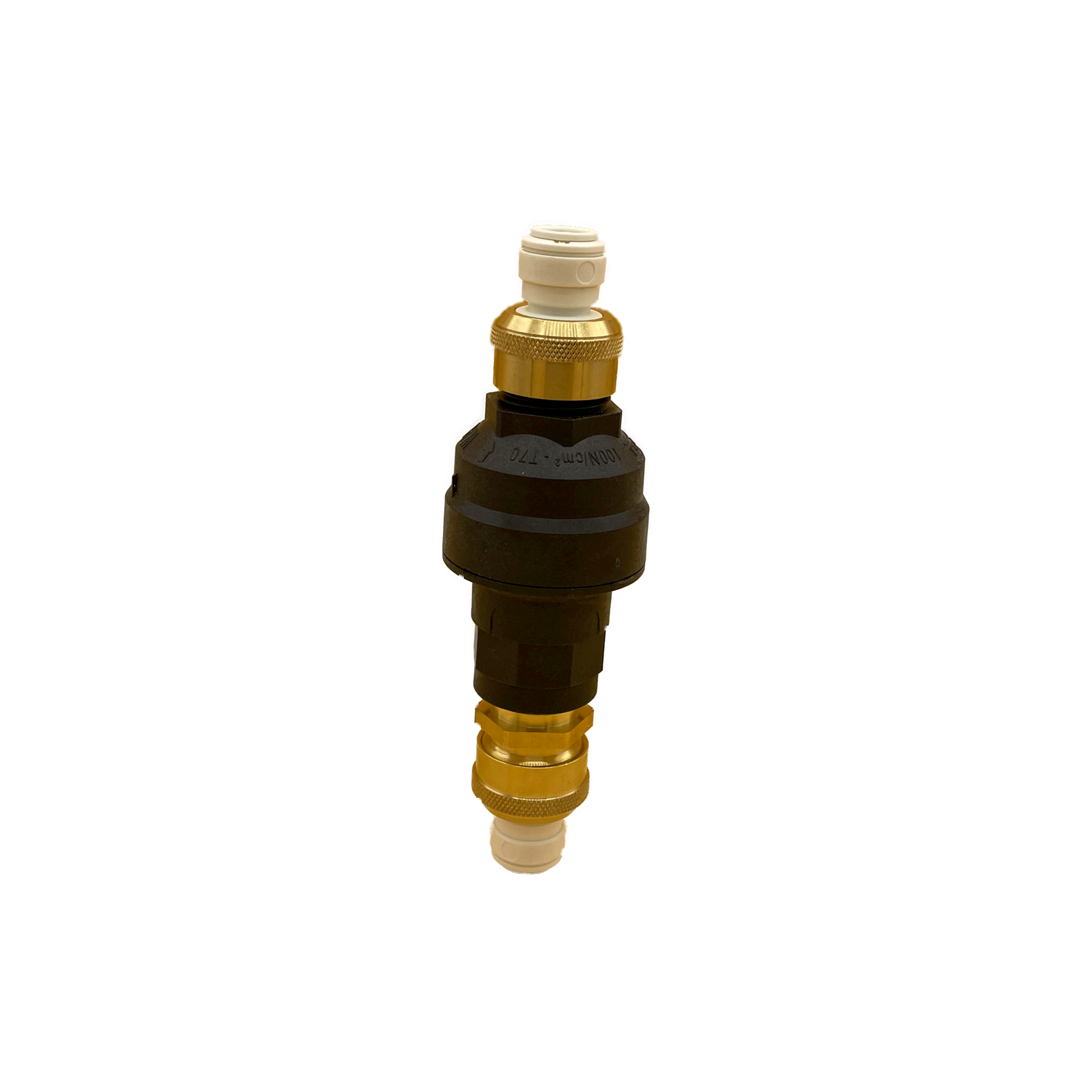

Water Block Leak Shutoff Kit for 3/8" Supply Lines - Dual 3/8" Push-Fit Connections
Water Block Leak Shutoff Kit for 3/8" Supply Lines - Dual 3/8" Push-Fit Connections
SKU:HWD414017
Couldn't load pickup availability
Low stock: 10 left
Protect Your 3/8" Supply Lines & Downstream Appliances
Experience peace of mind with the Water Block. This 100% mechanical water shutoff device can be set to shut off the water if the amount of water that flows through the device during a measurement cycle exceeds the installer-determined shutoff setting. As long as the flow volume does not exceed the shutoff setting, the device automatically resets its measurement and will be ready for the next flow event. This makes the device perfect for identifying water leaks and running water situations from burst supply lines, leaking connections, stuck valves, and other appliance failures.
Key Features:
- Automatic water shutoff valve for protection from leaks & running water situations
- 3/8" Push-fit/quick connect adapter fittings on Water Block inlet and outlet to adapt to plastic and copper water lines
- Ideal for protecting downstream supply lines, connections, and appliances
- 10 Adjustable water shutoff settings ranging from 1.3 gallons - 13 gallons
- Easy installation and operation
- Easy device reset if activation occurs (not a single use device)
- Engineered in Italy and made in Poland (not made in China)
Don't let water damage ruin your home or business.
General Information
General Information
- Automatically shuts off the water supply to your application to minimize damage caused by leaks and floods
- Detects and stops running water from supply line bursts & leaks, crimp leaks, bad connections, stuck valves, and other situations
- Easy to install directly downstream of the water supply shutoff valve or on the supply line

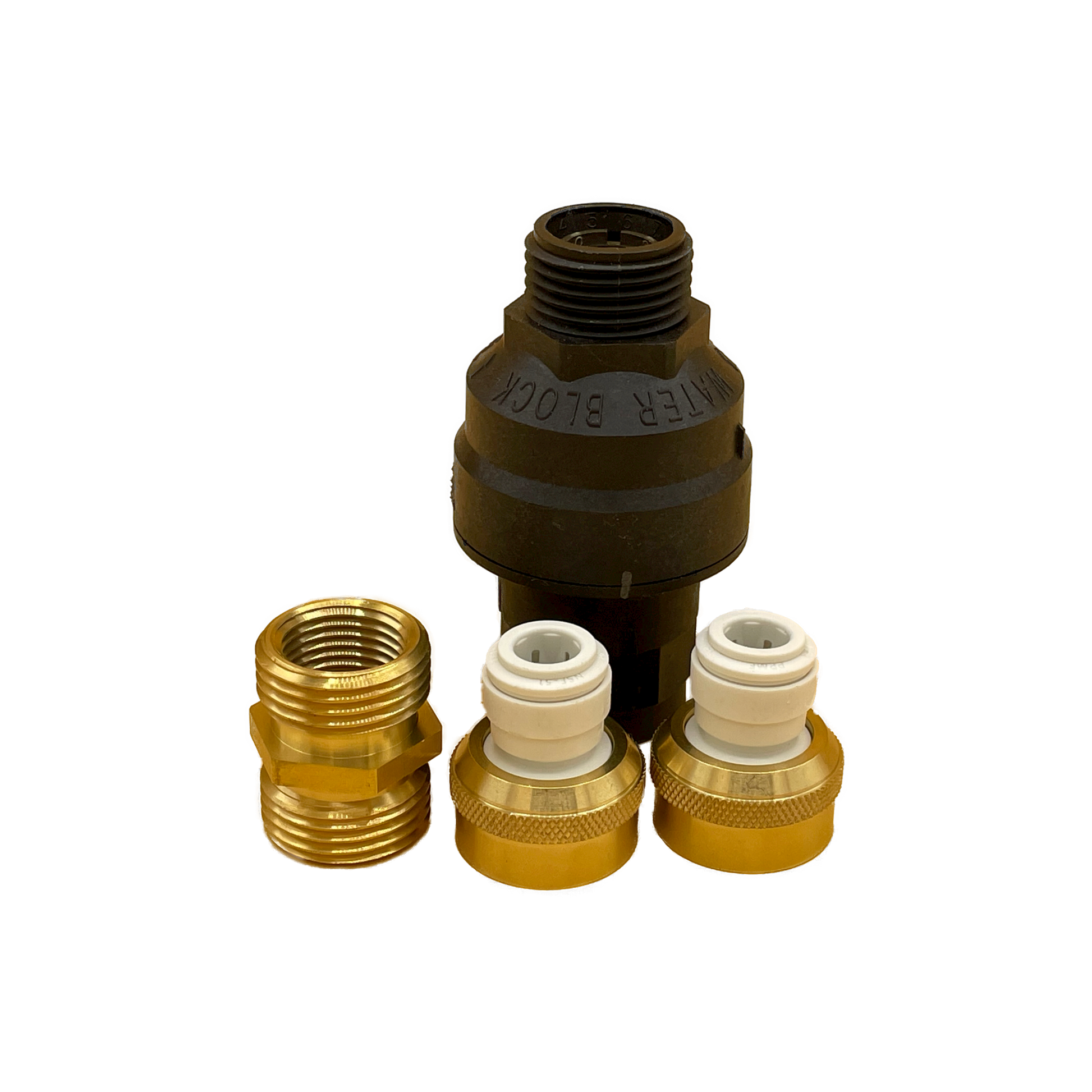

- 3/8" brass push-fit fittings included in kit
- Automatic, 100% mechanical, no batteries or power required
- Shutoff valve activates when a continuous leak/flow volume surpasses the preset shutoff setting
- Automatically resets its measurement if a predetermined level is not attained
- 10 activation volume settings in increments of 1.3 gallons (1.3 - 13.0 gallons)
- Installer should set device for gallon setting slightly above the appliance or applications maximum water consumption volume
- Water Block only stops water leaks downstream of the device
- Easy DIY installation

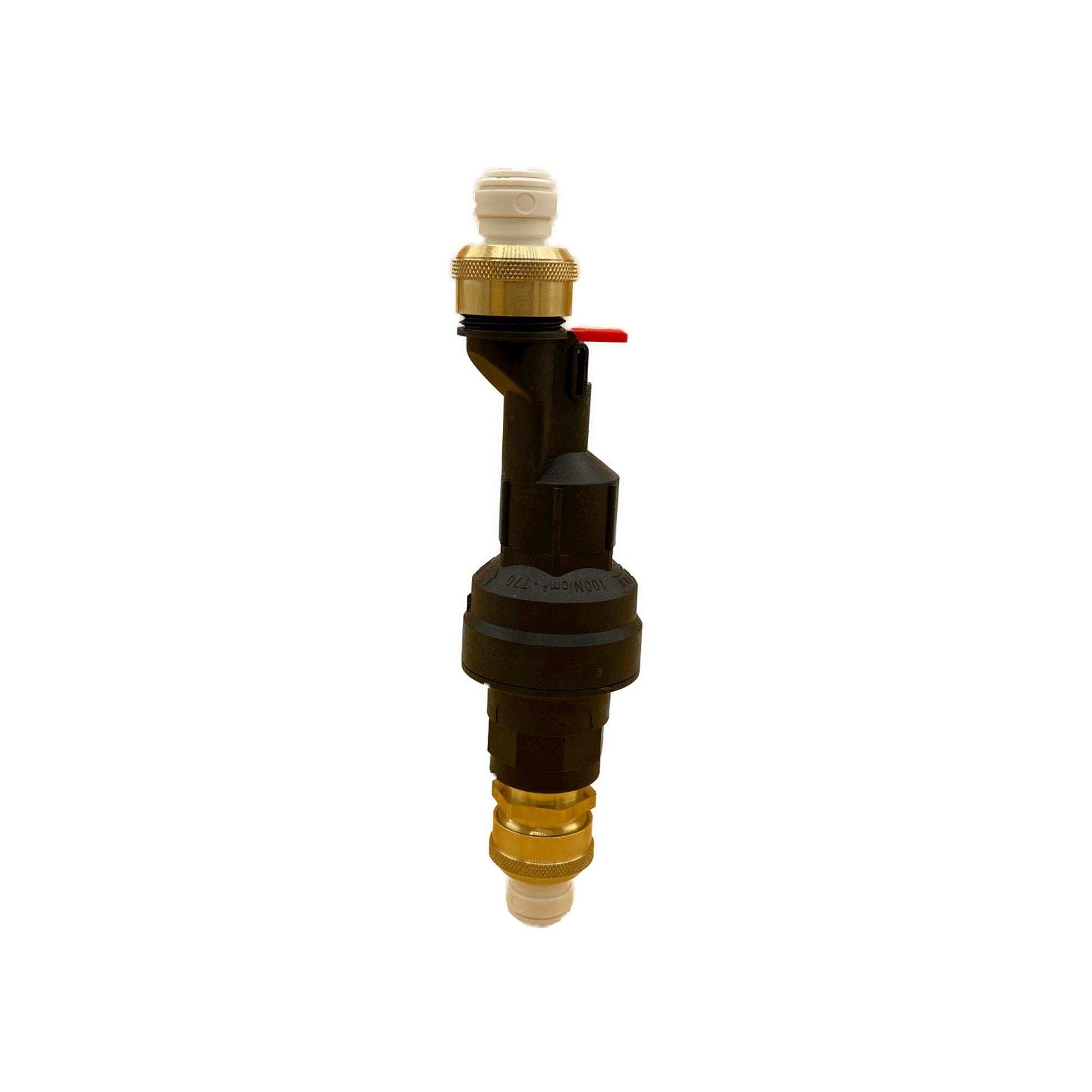

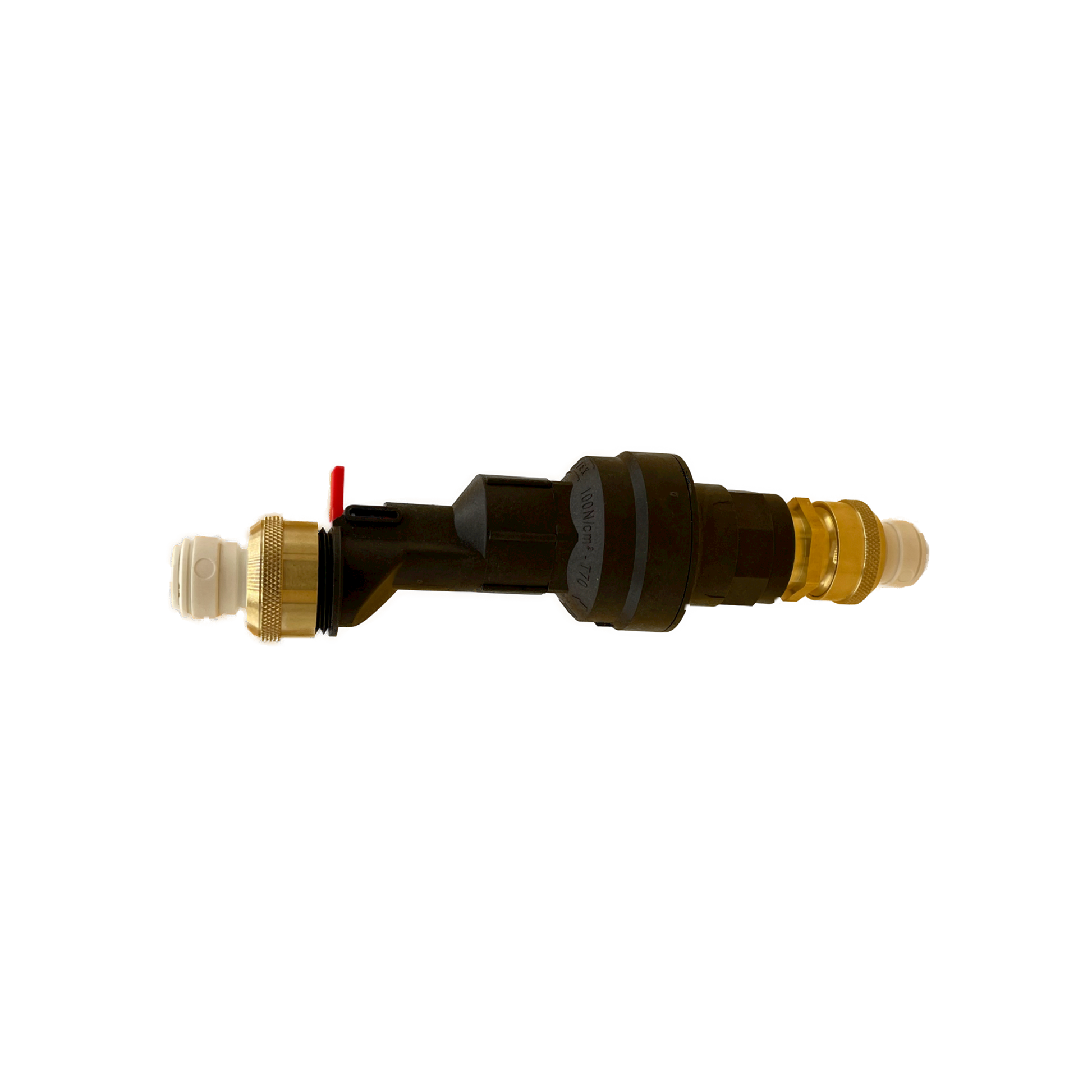

- Internal release pin or convenience tool option for manual reset (only necessary upon activation)

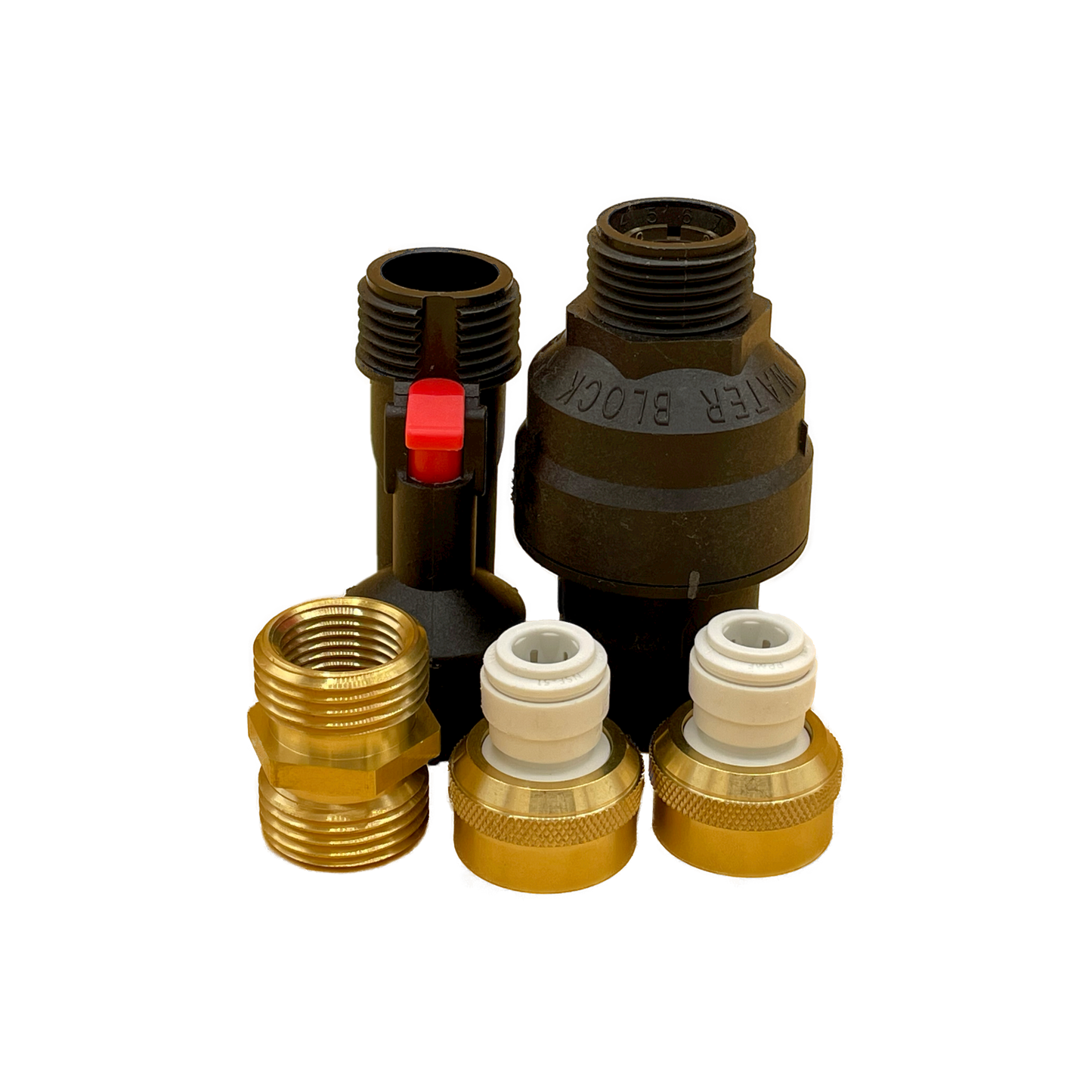

- Convenience tool provided for manual reset (only necessary if activation occurs)
- Configuration options to connect directly to a supply hose or supply line/pipe
- Learn More Here
Compatible Brands
Compatible Brands
- Most water consuming appliances & appliance brands.
Product Specifications
Product Specifications
Technical Specifications:
- Configuration Overall Length: 6.75 - 9.25 in. (Range Based On Install w/ or w/o Reset Device)
- Water Block: 3/4 in. Garden Hose Thread Female Inlet Connection
- Water Block: 3/4 in. Garden Hose Thread Male Outlet Connection
- Brass Fitting: 3/4 in. Male GHT by 3/4 in. Male GHT Connection
- Brass Fitting: 3/4 in. Female GHT to 3/8 in. Female John Guest Push-Fit Connection
Operating Design Conditions:
- Ambient Temperature: 36°F - 140°F
- Relative Humidity: 30% - 95%
- Fluid Temperature: 36°F - 140°F
- Maximum Pressure: 150 psi at 70°F
- Maximum Pressure: 60 psi at 140°F
- Device Requires A Continuous Flow or A Minimum Leak Rate of 0.50 Gal/Min To Activate
Legal Notice:
- California Prop 65 Warning - This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
Connection/Fittings Guide
Connection/Fittings Guide
Click here for the adapters and fittings guide for connecting the
device to the plumbing application or appliance.
