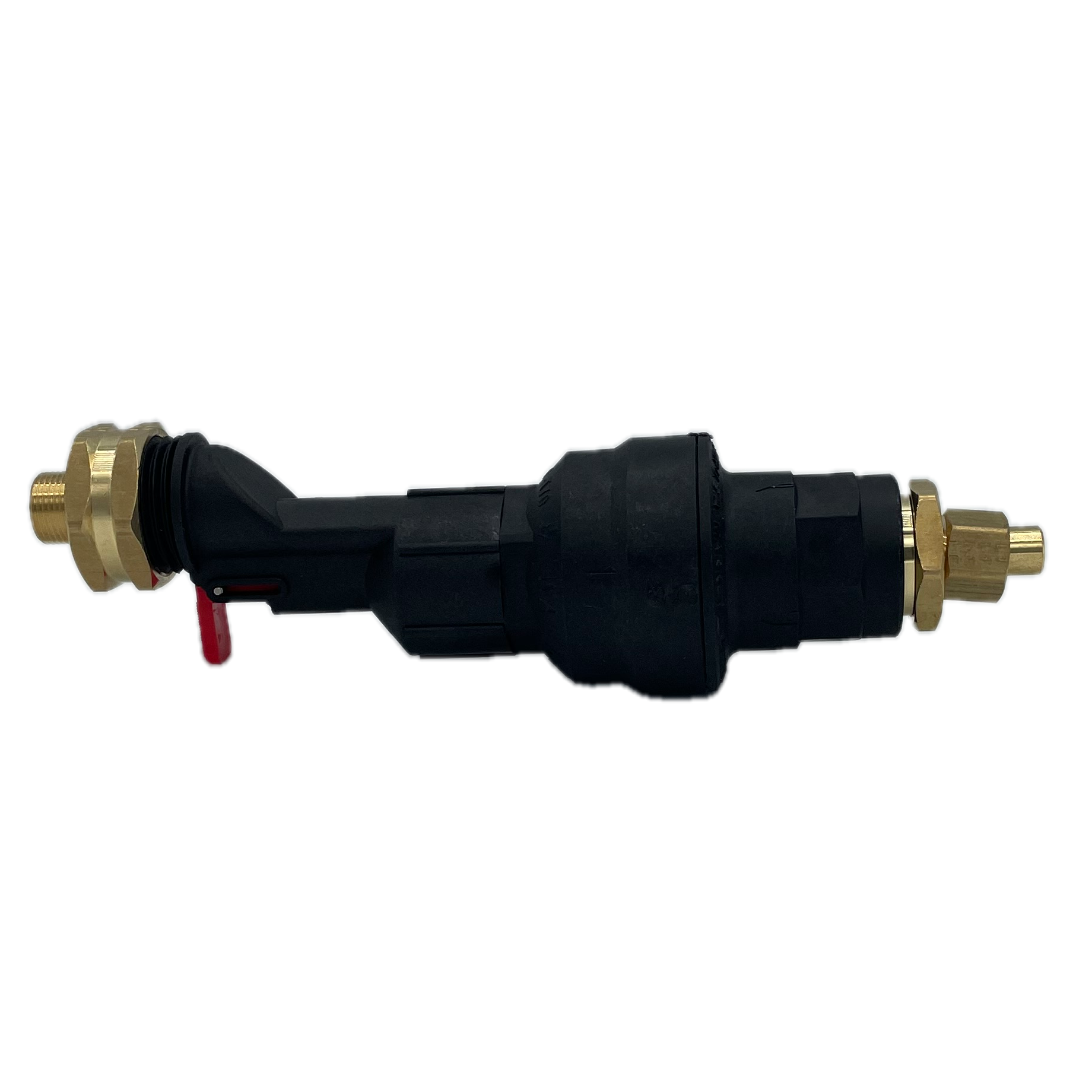

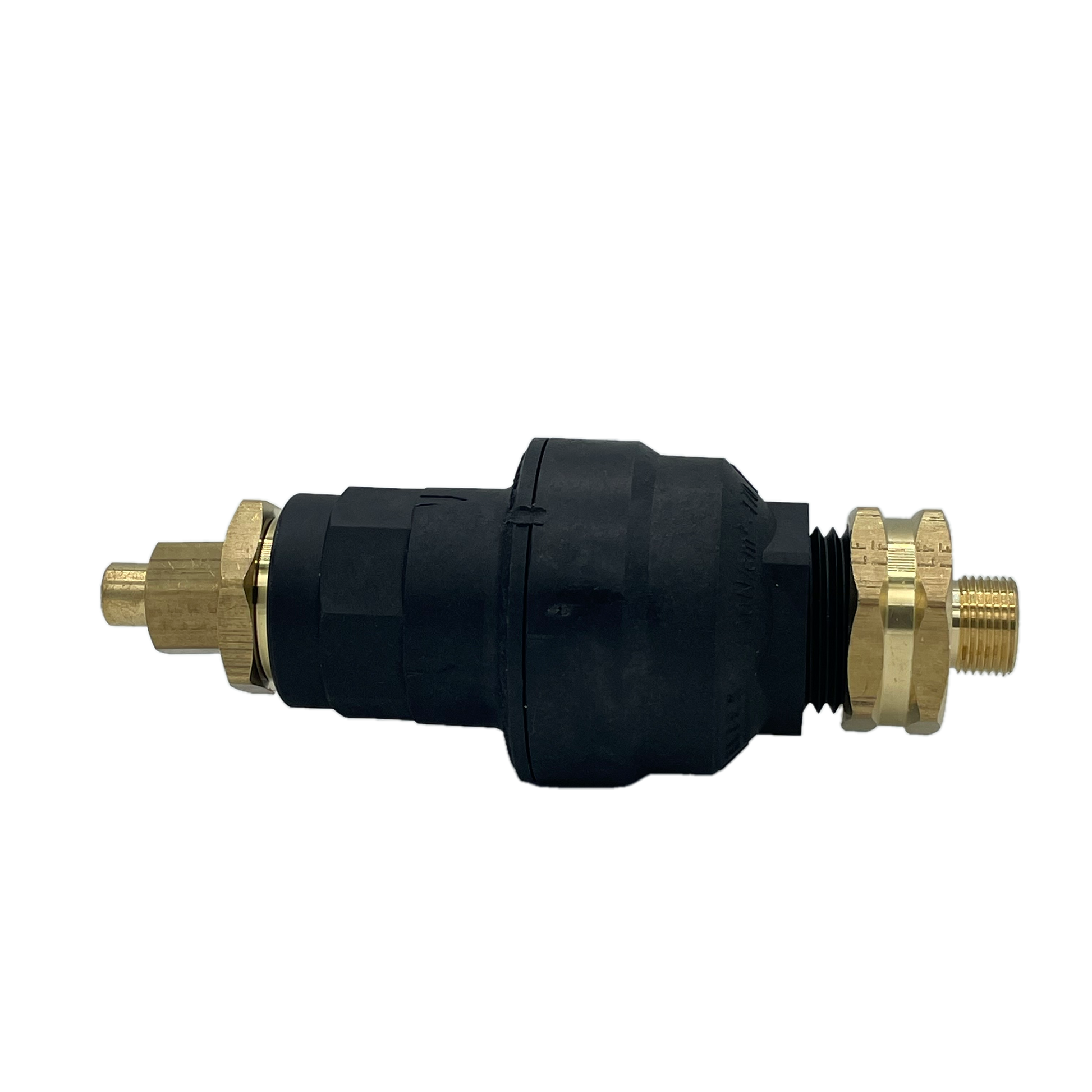

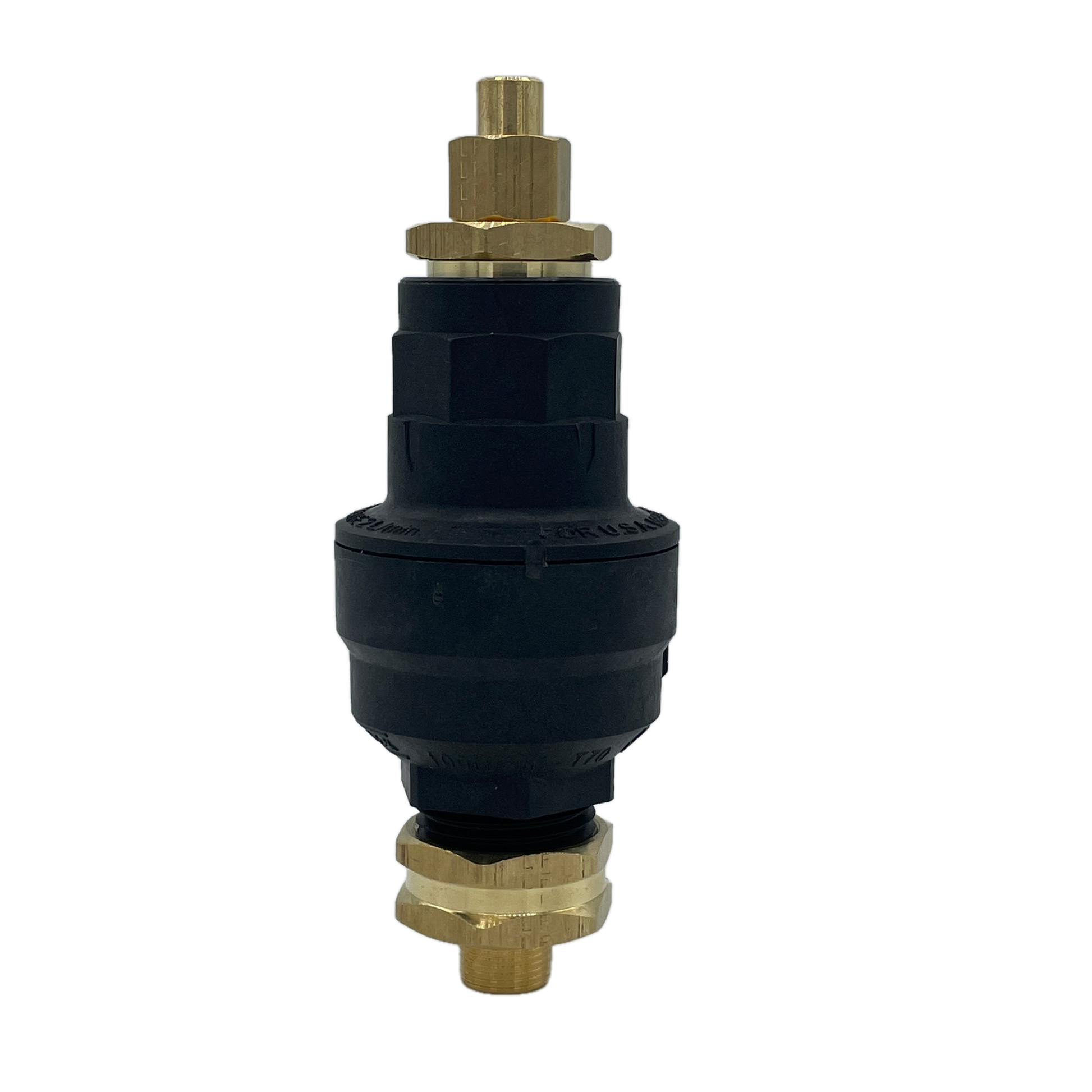

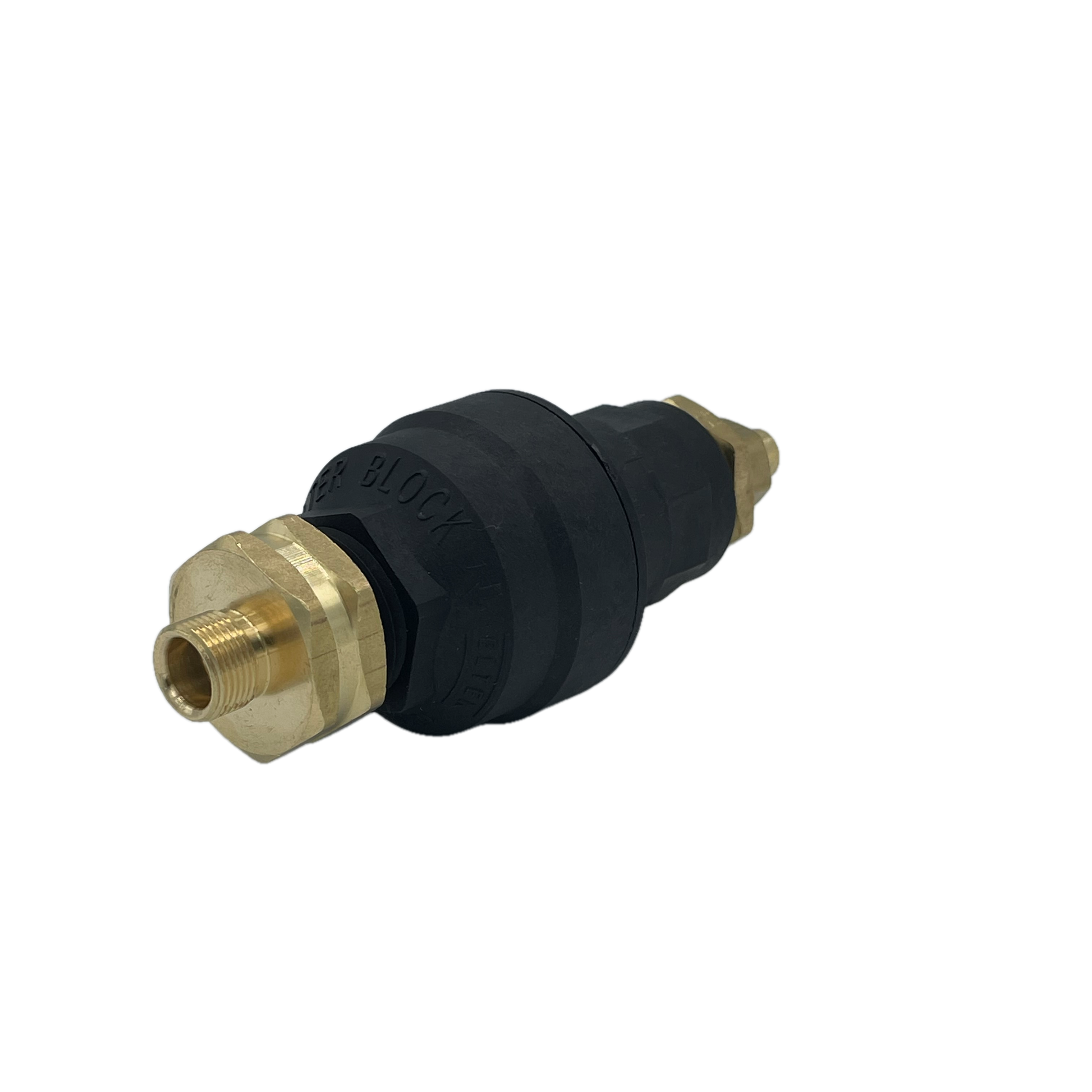

Water Block - 3/8" Sink Shutoff Installation Kit

Water Block - 3/8" Sink Shutoff Installation Kit

Regular price $33.97
Regular price Sale price $33.97
Sale Sold out
Shipping calculated at checkout.
Style

SKU:HWD414001

300 in stock

Leak Stop & Flood Prevention Technology - Automatic Water Shutoff

The Water Block Sink Leak Shutoff Kit is a mechanical water shutoff device designed to help prevent excessive water flow and minimize potential damage. With a simple, reliable design, it offers an added layer of protection for homes and businesses—helping reduce water waste and avoid costly repairs.

Key Features:

  • Leak Detection: The Water Block technology mechanically measures water flow during continuous flow events, accurately detecting and stopping running water situations.
  • Instantaneous Shutoff: When a leak or excessive water consumption is detected, the Water Block immediately shuts off the water supply, preventing further damage. This shutoff occurs as soon as the user selected shutoff threshold is exceeded during a continuous flow measurement cycle. As long as the water usage volume during the particular use is below the shutoff activation volume, the device will automatically reset itself and be ready for the next use/measurement cycle.
  • Easy Installation:  Our user-friendly kit includes everything you need for a quick and hassle-free installation, typically completed in under 5 minutes.

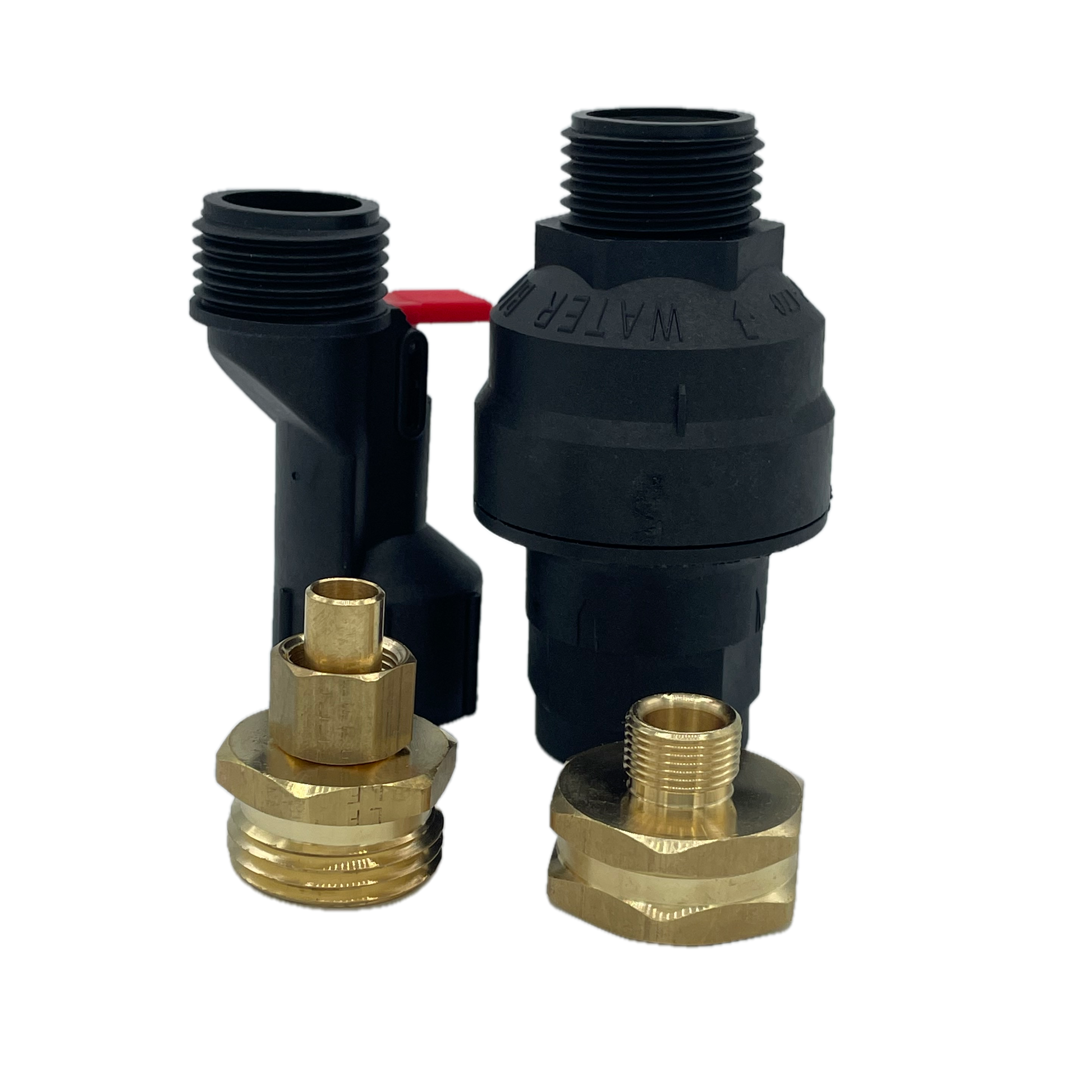

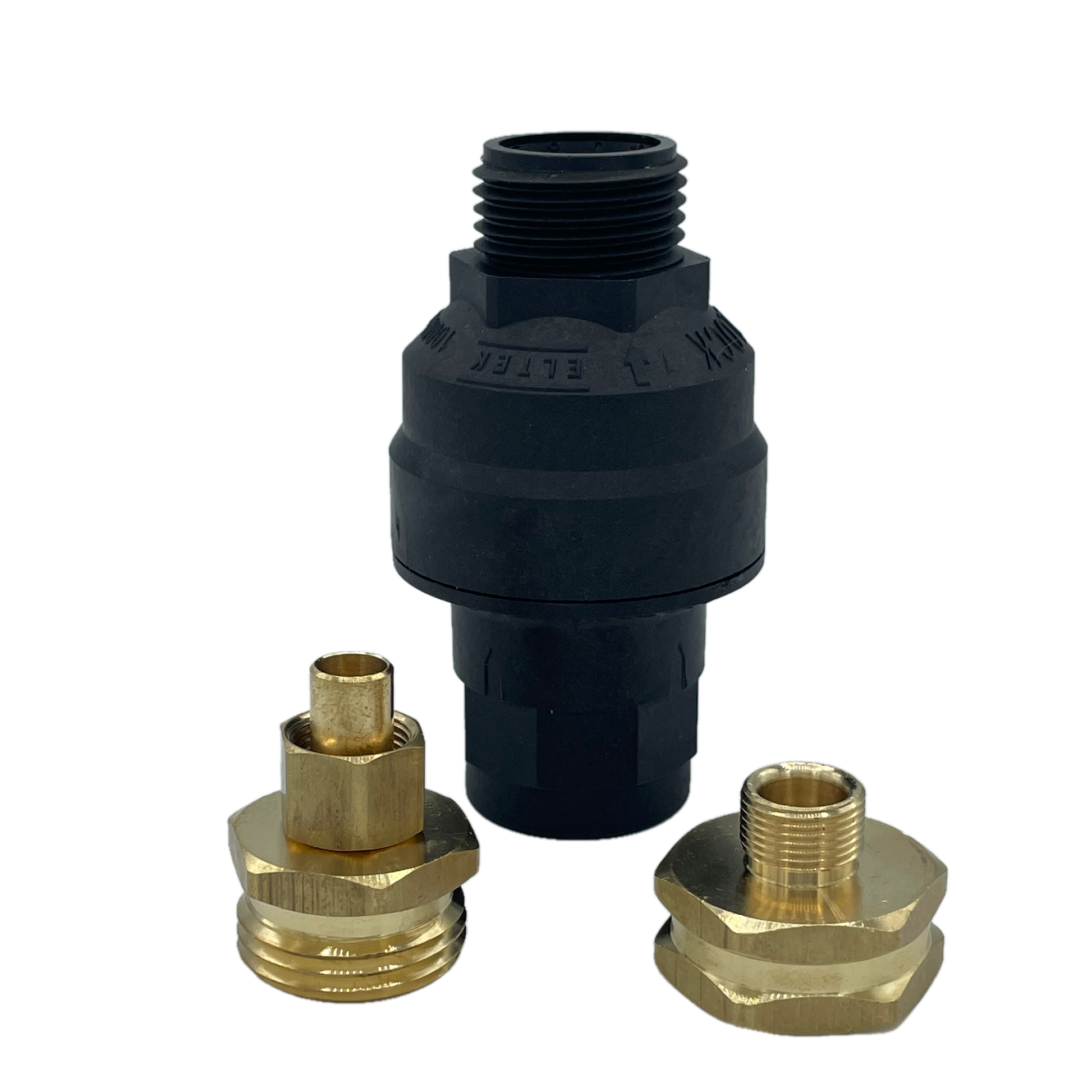

  • Universal Compatibility: The Water Block is designed to be compatible with most sink & toilet types and general 3/8" water supply setups, ensuring broad applicability. The kit includes a 3/8" straight pipe adapter, a Water Block automatic shutoff valve, a 3/4" female to 3/8" male brass nipple fitting, and an optional Water Block Reset tool.
  • Durable Construction: Built with high-quality materials and Italian engineering, the Water Block delivers exceptional performance and long-lasting reliability.
  • Cost-Effective: By preventing serious water damage and reducing water consumption, the Water Block can save you significant money on repairs, utility bills, and insurance premiums.

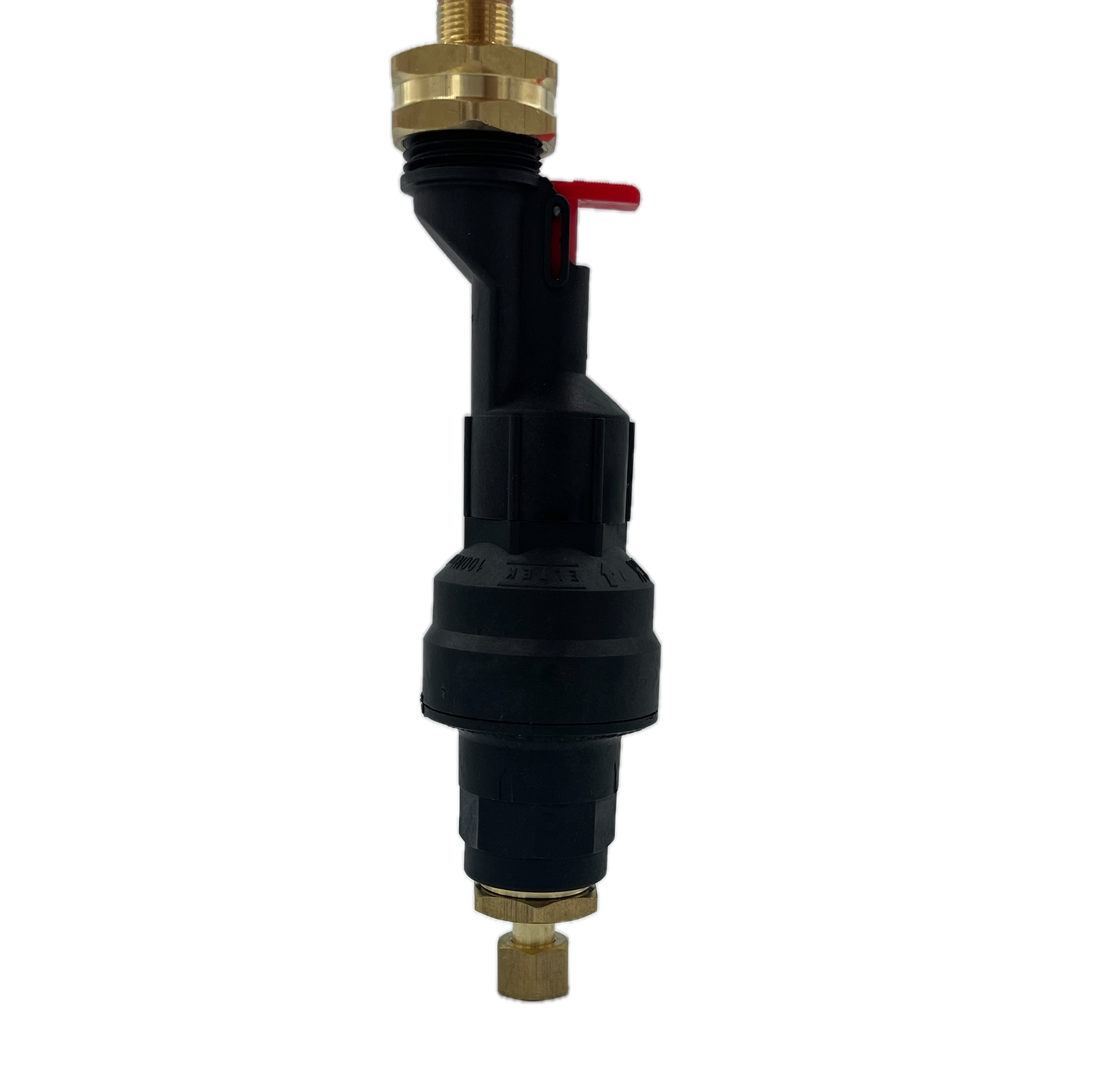

  • Vertical Installation: The Water Block Sink Kit for vertical installations is ideal when there is vertical space between the stop valve and the bottom of the sink or toilet.
  • Easy Maintenance: A "set and forget" device, the Water Block requires minimal maintenance. If the device activates, it indicates a potential issue which requires further investigation.

How it Works:

  1. Installation: Connect the Water Block between your water supply stop valve and the supply hose.
  2. Monitoring: The Water Block continuously monitors water flow, detecting any abnormal patterns, leaks, and running water conditions.
  3. Automatic Shutoff: If a leak or excessive water usage is detected, the Water Block automatically shuts off the water supply.

Benefits of the Water Block:

  • Prevent Catastrophic Water Damage: Protect your home or business from costly water damage, mold growth, and structural damage.
  • Reduce Water Bills: Save money on your water consumption by stopping leaks and preventing unnecessary water waste.
  • Peace of Mind: Enjoy the peace of mind that comes with knowing your toilet and property is protected from leaks and floods.
  • Insurance Savings: Reduce your insurance premiums by demonstrating proactive measures to prevent water damage.
  • Environmental Responsibility: Contribute to water conservation and reduce your environmental impact.
  • Protect Your Investment: Safeguard the value of your property by preventing costly water damage.
  • Improve Home Safety: Reduce the risk of slips, trips, and falls caused by water leaks.

The Water Block Sink Shutoff Kit is a must-have for any homeowner, property manager, or business owner who wants to protect their property from water damage and save money. It's easy to install, reliable, and effective. Also perfect for situations where someone may unintentionally leave the water running.

Click Here for Installation Instructions

General Information

  • Automatically shuts off the water supply to your toilet to prevent leaks and floods
  • Detects and stops flapper leaks, supply line leaks, and crimp leaks
  • Easy to install directly downstream of the water supply shutoff valve
  • 3/8" brass fittings included in kit
  • Qty1: 3/8" straight pipe male with compression ferrule and nut to 3/4" male. Garden hose thread
  • Qty1: 3/4" female to 3/8" male. Garden hose thread
  • Automatic, 100% mechanical, no batteries or power required
  • Valve activates when a preset, continuous leak volume is reached
  • Automatically reactivates itself if a predetermined level is not attained
  • 10 activation volume settings in increments of 1.3 gallons (1.3 - 13.0 gallons)
  • Set device for gallon setting slightly above toilet tank capacity
  • Water Block only stops water leaks downstream of the device
  • Easy DIY installation
  • Internal release pin or convenience tool option for manual reset (only necessary upon activation)
  • Learn More Here
  • *Fittings/Adapters May Be Required To Connect To The Water Supply*

Compatible Brands

Product Specifications

Technical Specifications:

  • Configuration Overall Length: 5.5 in.
  • Water Block: 3/4 in. Garden Hose Thread Female Inlet Connection
  • Water Block: 3/4 in. Garden Hose Thread Male Outlet Connection
  • Brass Fitting: 3/8 in. Male to 3/4 in. Male Inlet Connection
  • Brass Fitting: 3/4 in. Male to 3/8 in. Male Inlet Connection

Operation Design Conditions:

  • Ambient Temperature: 36°F - 140°F
  • Relative Humidity: 30% - 95%
  • Fluid Temperature: 36°F - 158°F
  • Device Requires A Continuous Flow or Leak of 0.50 Gal/Min To Activate

Legal Notice:

  • California Prop 65 Warning - This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

Connection/Fittings Guide

Click here for the adapters and fittings guide for connecting the device to the plumbing application or appliance.
